Pad Mounted Transformer Oil and Insulating Fluid Guide: How Clara Reviewed Mineral Oil, PCB-Free Requirements, Oil Level and Maintenance Before RFQ

1. Clara's RFQ Included Oil Requirements from the Beginning

Clara Jensen, a facility compliance manager at a large commercial facility and food processing park, was preparing to upgrade the site's electrical infrastructure. Her project team needed to procure a new pad mounted transformer to support a new production line. However, Clara knew that ordering a transformer wasn't just about specifying the kVA and voltage. She needed to confirm the pad mounted transformer oil and insulating fluid requirements before sending out the Request for Quotation (RFQ).

Her team had to ensure the transformer insulating fluid met strict environmental and safety standards. They needed to confirm the fluid type, verify the PCB-free requirement, and ensure all oil-related accessories and maintenance information were clearly defined. Clara understood that addressing these details early would prevent compliance issues, maintenance headaches, and unexpected costs down the road.

2. Why Insulating Fluid Matters in a Pad Mounted Transformer

In an oil filled pad mounted transformer, the oil is not just a filler; it is a critical functional liquid. The transformer insulating fluid plays a vital role in the equipment's overall performance, safety, and longevity. It directly affects electrical insulation, heat transfer, maintenance procedures, environmental compliance, total weight, and the selection of necessary accessories.

Choosing the right fluid and ensuring it is properly monitored and maintained is essential for reliable operation. Clara knew that overlooking the oil specifications could lead to overheating, insulation breakdown, or environmental violations, especially in a sensitive food processing environment.

3. Insulation, Cooling and Arc Suppression: What Transformer Oil Actually Does

Transformer oil serves three primary functions within the tank. First, it provides electrical insulation, separating energized parts and isolating the windings and core from air and moisture. This high dielectric strength prevents short circuits and electrical breakdowns.

Second, the oil facilitates cooling. As the transformer operates, the core and windings generate heat. The oil absorbs this heat and transfers it through natural circulation (ONAN cooling) to the tank walls and radiators, where it dissipates into the surrounding air. This process manages the temperature rise and prevents overheating.

Third, the oil assists in arc suppression, particularly in tap-changing mechanisms. However, it is crucial to note that arc suppression must be considered in conjunction with the overall protection design, fusing, tap changer type, switching procedures, and qualified operation. A normal, healthy transformer tank should not experience arcing during standard operation.

4. Mineral Oil, PCB-Free Requirements and Alternative Insulating Fluids

When reviewing specifications, Clara noted that a mineral oil transformer is the most common type. However, a critical requirement for modern installations is ensuring the use of PCB-free transformer oil. Polychlorinated biphenyls (PCBs) are toxic and environmentally hazardous, so confirming a PCB-free mineral oil certification is a mandatory RFQ field.

Depending on the project specification, local regulations, fire-safety requirements, environmental policies, or utility requirements, alternative fluids may be necessary. A natural ester transformer fluid or synthetic ester transformer fluid offers higher flash points and better biodegradability, making them suitable for sensitive locations. While advanced refining improves the purity, oxidation stability, impurity control, and low-temperature behavior of highly refined mineral insulating oils, buyers primarily need to confirm the fluid type, applicable standard, test data, and environmental compliance.

5. Oil Quality and Maintenance Monitoring

Maintaining oil quality is essential for transformer longevity. Clara's maintenance plan included regular monitoring of moisture content, acidity, and dielectric strength (breakdown voltage). High moisture or acidity can degrade the insulation and lower the dielectric loss resistance, leading to potential failures.

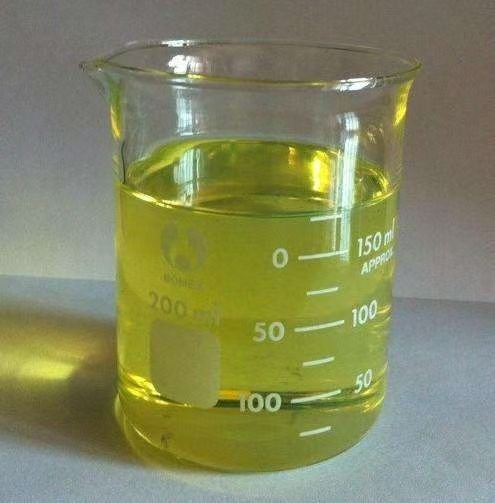

Effective transformer oil maintenance requires proper sampling access and a well-defined maintenance schedule. Taking a regular transformer oil sample allows technicians to analyze the fluid's condition, check oxidation stability, and determine if filtering or replacement is necessary.

6. Oil Level Gauge: Why Visual Fluid Level Check Matters

An oil level gauge is a simple but crucial accessory. It allows maintenance personnel to perform a quick visual check of the fluid level inside the tank. A low oil level can expose the core or windings, compromising insulation and cooling, and potentially leading to catastrophic failure. Clara ensured this gauge was included in her RFQ to facilitate easy routine inspections.

7. Oil Temperature Gauge and Temperature Monitoring

Monitoring the operating temperature is vital for assessing the transformer's health and load conditions. An oil temperature gauge (or thermometer) provides real-time data on the top oil temperature. This is directly connected to the effectiveness of the ONAN cooling system and helps verify that the temperature rise remains within safe design limits.

8. Drain Valve, Sampling Valve and Maintenance Planning

To facilitate proper maintenance, Clara specified a drain valve and a sampling valve. The sampling valve allows technicians to safely draw a transformer oil sample for laboratory analysis without taking the unit offline. The drain valve is necessary for larger maintenance tasks, such as filtering or replacing the oil. These accessories are fundamental to a proactive maintenance plan.

9. Pressure Relief Valve and Tank Safety Accessories

Internal faults can generate gases that rapidly increase pressure inside the sealed tank. A pressure relief valve is a critical safety accessory designed to vent excess pressure safely, preventing tank rupture or explosion. Clara verified that this safety feature was standard on the proposed units.

10. Oil Volume, Total Weight and Site Installation

The transformer oil volume significantly impacts the oil-filled weight and the total weight of the unit. Clara needed this information to plan the site installation, including crane capacity, concrete pad design, and shipping logistics. A larger oil volume means better cooling capacity but requires more robust handling and installation preparations.

11. What Clara Sent Before Requesting a Quotation

Before sending the formal RFQ, Clara compiled a comprehensive document package. She included the expected kVA, primary and secondary voltages, phase, and frequency. Crucially, she detailed the installation environment, destination country, and specific utility requirements. She explicitly stated the need for PCB-free mineral oil, listed the required oil-related accessories, and requested all relevant testing documents to ensure compliance.

12. RFQ Checklist for Pad Mounted Transformer Oil and Insulating Fluid Review

To ensure no detail was missed, Clara used the following 32-item checklist for her pad mounted transformer RFQ:

13. How TransformerGrid Helps Review Oil, Accessories and Maintenance Requirements

TransformerGrid provides an engineering review before quotation to help buyers like Clara navigate complex specifications. Our engineers review the requested oil type, verify PCB-free certifications, and ensure all necessary accessories like the oil level gauge, thermometer, and sampling valve are included. We help align the transformer design with the destination country standards and utility requirements, ensuring a smooth procurement process.

14. Conclusion

Specifying an outdoor pad mounted transformer requires careful attention to the insulating fluid. By confirming the oil type, PCB-free status, necessary accessories, and maintenance requirements before the RFQ, buyers can ensure safety, compliance, and long-term reliability. Final fluid selection and compliance depend on destination country standards, utility requirements, project specifications, fire-safety requirements, environmental rules, and approved electrical design. Note that we do not claim guaranteed environmental approval, guaranteed fire safety, guaranteed utility approval, guaranteed oil performance in all countries, zero risk, zero failure, or guaranteed delivery time.
