Pad Mounted Transformer RFQ When Drawings Are Not Ready: How Sophie Started with Equipment kW, Project Country and Future Solar Planning

1. Sophie Needed RFQ Guidance Before Final Drawings Were Ready

Sophie Carter, an electrical project coordinator and procurement engineer for a fast-growing manufacturing company, faced a frustrating schedule conflict. Her company was expanding their existing factory to include a new commercial facility and production line. Management wanted the new facility operational within nine months. However, the final electrical engineering drawings were severely delayed, and the local utility had not yet issued their final interconnection approval.

Sophie knew that a pad mounted transformer is a critical, long-lead item. Waiting another four to six weeks for the final stamped drawings before starting the pad mounted transformer RFQ (Request for Quotation) would completely derail the project schedule. Furthermore, the old transformer nameplate photo from the adjacent existing building was unavailable because the unit was locked behind a restricted utility fence, and the site manager had lost the original documentation.

Sophie wanted to begin transformer planning and get preliminary budget pricing and lead times immediately, but she did not know what information was enough for an early engineering review before quotation. She needed a practical path forward to start the pad mounted transformer quotation process without the final drawings.

2. Why Engineers First Ask for Drawings and Nameplate Photos

When a buyer contacts a transformer manufacturer, the first question from the engineering team is almost always: "Do you have the electrical drawings or a nameplate photo?"

Transformer drawings, specifically the single-line diagram (SLD) and load schedule, provide the exact technical baseline approved by the project's consulting engineer. They dictate the rated capacity, primary voltage, secondary voltage, short-circuit impedance, vector group, and protective fusing requirements. For replacement projects, a clear nameplate photo instantly answers all these questions, ensuring the new unit matches the existing utility infrastructure perfectly.

Without these documents, manufacturers often hesitate to provide a quotation because guessing the specifications leads to inaccurate pricing, rejected utility connections, and massive project delays. However, as Sophie learned, there is a structured way to proceed when these documents are delayed.

3. If Drawings and Nameplate Photos Are Not Available Yet

If transformer drawings and a nameplate photo are not available yet, the procurement process does not have to stop. The goal shifts from getting a binding final quotation to obtaining a highly accurate preliminary engineering review.

Sophie realized that while she couldn't provide the final impedance or vector group, she had deep knowledge of what the new factory would actually do. By communicating the core operational parameters to the manufacturer early, she could define the physical size, approximate budget, and manufacturing lead time of the transformer, keeping her project on schedule while waiting for the engineers to finish the final SLD.

4. Starting With Total Connected Equipment Power in kW

The most critical piece of missing information was the transformer's required capacity (kVA). Without a load schedule, Sophie needed a different approach. She gathered the mechanical specifications for the new factory and calculated the total connected equipment power in kW.

She compiled the main equipment list: CNC machines, industrial HVAC units, lighting, compressed air systems, and welding stations. By adding up the continuous running power of all this equipment, she arrived at a total connected load in kilowatts. While kW is not the same as kVA (due to the power factor of inductive loads like motors), providing the total equipment power in kW allows an experienced transformer engineer to estimate the required kVA by applying standard demand factors and power factor assumptions. This gave Sophie a solid baseline for the pad mounted transformer RFQ without waiting weeks for the final load calculation.

5. Why Project Country or Region Changes the Transformer Review

Sophie explicitly stated the project country and region in her early communication. Project country matters heavily because electrical standards are deeply regionalized.

If the project is in North America, the pad mounted transformer must strictly follow IEEE/ANSI standards, typically featuring a dead-front design, specific bushing arrangements, and specific high-voltage fusing. If the project country is in Latin America or the Middle East, IEC standards might apply, altering the required testing documents, insulation levels, and safety clearances. The utility requirements in different regions dictate the baseline safety and efficiency standards the transformer must meet. Simply stating the project region allowed the manufacturer to narrow down the design philosophy immediately.

6. Transformer Type, Rated Capacity, Voltage, Phase and Frequency

Even without the final SLD, Sophie could confirm the fundamental electrical parameters. She confirmed the application type (industrial manufacturing) and specified a three phase transformer, as heavy industrial equipment requires three-phase power.

She verified with the local utility that the incoming grid line was 13.8kV, establishing her primary voltage. Based on her main equipment list, her required secondary voltage was 480Y/277V. She also confirmed the electrical frequency for her region: 60Hz. Knowing whether a system is 50Hz or 60Hz is non-negotiable, as it fundamentally changes the magnetic core design of the transformer.

7. Technical Data Fields That May Still Be Needed Later

Sophie understood that her early RFQ was a starting point. She informed the manufacturer that several specific technical fields would be finalized once the drawings were stamped. These included:

• Cooling method: Typically ONAN (Oil Natural Air Natural), but subject to change if the enclosure restricted airflow.
• Tap changer: The exact voltage regulation steps required by the local grid.
• BIL: Basic Impulse Level, dictated by the utility's lightning protection requirements.
• Impedance: The short-circuit impedance percentage required to coordinate with downstream breakers.
• Accessories and Cable entry direction: Exact placement of gauges, valves, and whether cables would enter radially or in a loop feed configuration.
• Testing documents: Specific factory acceptance tests (FAT) required for utility sign-off.
• Required delivery schedule: Expected site readiness dates.

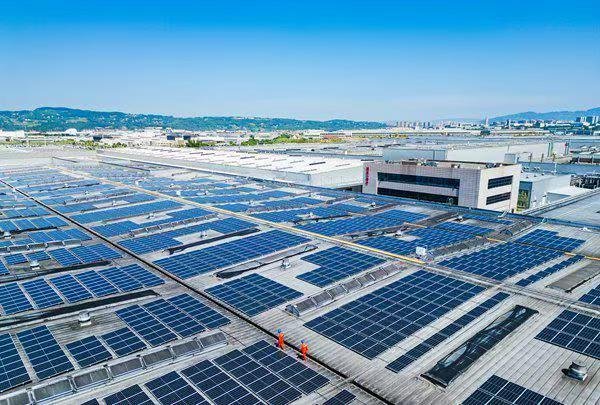

8. Why Sophie Was Asked to Reserve Space for Future Solar Step-Up Planning

During the engineering review before quotation, a critical topic arose: the massive flat roof of the new factory. The engineering team asked Sophie if the company planned to install a rooftop photovoltaic system in the future to offset energy costs. Sophie confirmed it was in the five-year plan but had not been considered for the immediate transformer procurement.

The engineers advised Sophie that a standard pad mounted transformer is designed to step down voltage from the grid to the facility. If a massive rooftop solar array is added later, generating excess power to send back to the grid, the facility will need a step-up transformer. A step-up transformer raises voltage from a lower voltage (the solar inverter output) to a higher voltage for power transmission or grid connection.

They advised Sophie to revise her site plan immediately to reserve space for future energy storage, solar inverters, and the eventual step-up transformer. This also meant planning the underground cable routing now so the concrete wouldn't have to be torn up later. This foresight saved the company from massive future retrofit costs.

9. What Sophie Sent Before Requesting a Quotation

Instead of waiting another month for stamped drawings, Sophie compiled an "Early Planning Package" and sent it to the manufacturer. This package included:

• A clear statement that final SLD drawings were pending.
• The project country and specific utility territory.
• The application type (Industrial Manufacturing).
• The total connected equipment power in kW and the main equipment list.
• Confirmed primary voltage (13.8kV), secondary voltage (480Y/277V), 60Hz, three phase.
• The planned location of the concrete pad and the reserved space for future rooftop solar and energy storage.
• Her target delivery schedule to keep the project on track.

This proactive approach allowed the manufacturer to select the correct enclosure size, reserve production slot capacity, and issue a highly accurate preliminary pad mounted transformer quotation.

10. RFQ Checklist for Early Pad Mounted Transformer Review

Based on Sophie's successful approach, here is the complete checklist for initiating an RFQ when information is incomplete:

11. How TransformerGrid Helps When Project Information is Incomplete

TransformerGrid understands that construction schedules often outpace engineering documentation. We do not reject inquiries simply because the final SLD is missing. Instead, our engineering team works with project coordinators like Sophie to interpret equipment lists, apply standard demand factors based on the application type, and establish a safe baseline capacity. We provide early engineering review before quotation to identify missing parameters—like space for future solar step-up transformers—ensuring the project avoids costly mistakes early in the planning phase.

12. Conclusion

Waiting for final stamped drawings or struggling to find an old nameplate photo should not stall your project's critical path. By providing the total connected equipment power in kW, defining the project country, listing the primary voltage, secondary voltage, and frequency, and acknowledging future grid-connection voltage needs for solar, buyers can successfully initiate a pad mounted transformer RFQ. Early communication allows manufacturers to provide accurate preliminary pricing, reserve production capacity, and guide the next steps, ensuring the transformer arrives precisely when the site is ready. Note that final technical and economic results depend on utility rules, project standards, electricity price, solar resource, grid-connection requirements and local carbon-credit policy.
