The Crane Was on the Clock. One Interface Drawing Stopped the Transformer Installation

What happened — and why it matters

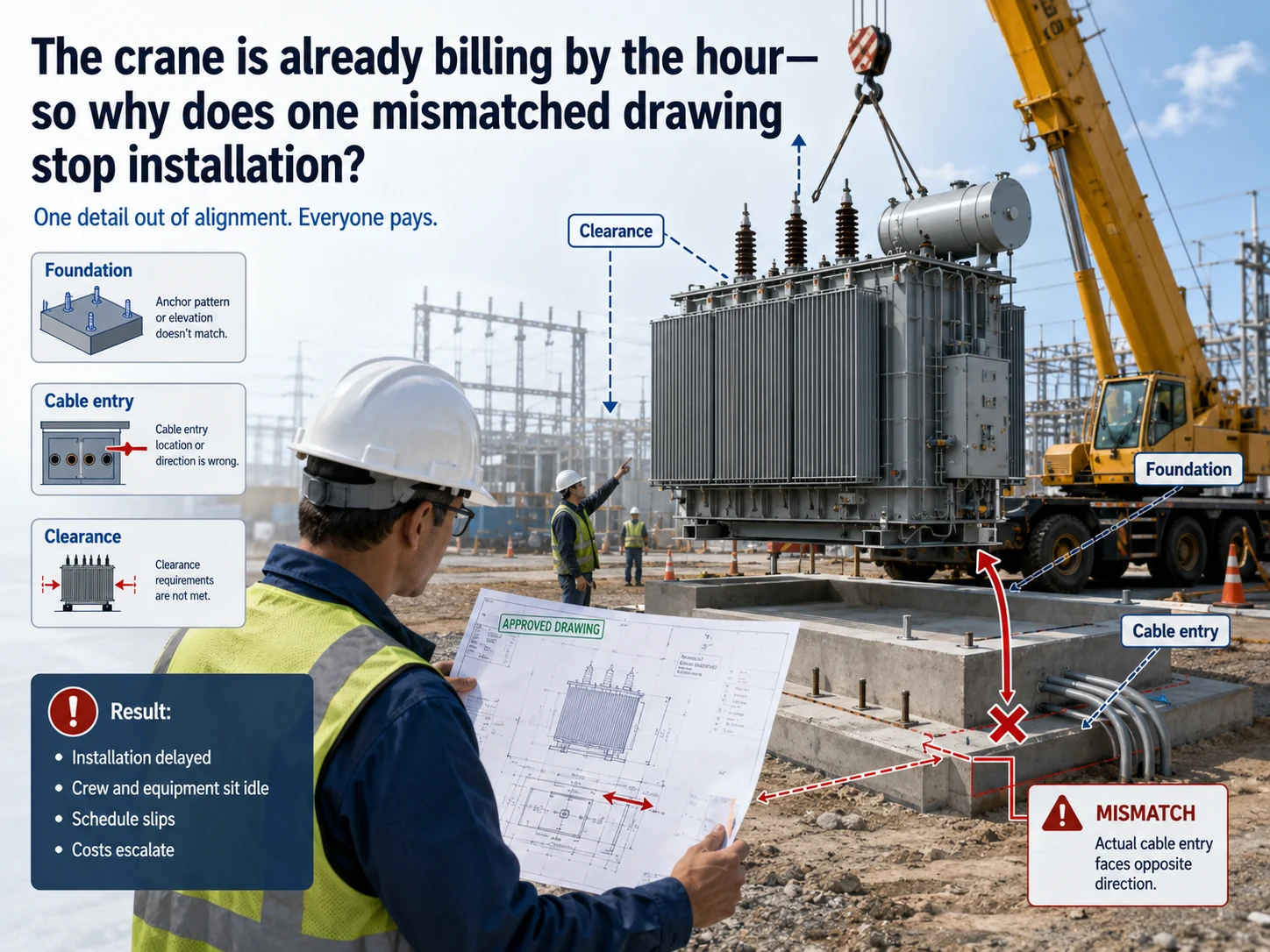

At 7:30 a.m., the crane outriggers were down. At 8:00, the installation crew began its final walkdown. At 8:20, Omar, the contractor lead, stopped the lift. The transformer was not overweight. The lifting plan was not wrong. The problem was the low-voltage cable-entry direction. The civil trench had been prepared to an earlier interface drawing. The final approved transformer drawing had moved to revision C, but the site interface schedule was still effectively on revision A. The crane was now billing by the hour while a dozen people waited for a “paper problem.”

The technical backbone is the installation preparation and interface verification. These stoppages are often dismissed as document control. In reality, they show that the project failed to treat interfaces as part of the product. A transformer is not a box that automatically becomes functional when placed on concrete. Foundation anchors, orientation, HV/LV side, grounding points, bushings or transport-removed parts, control cabinets, auxiliary power, cable-entry direction, bending radius, supports and clearances all have to occupy the same physical reality.

Effective installation preparation happens before the crane arrives. Overlay the transformer general arrangement with the civil foundation. Compare cable trenches and entry direction with terminal positions. Verify grounding take-off points. Confirm detached accessories and transport-removed components are present. Put required torque, sealing, oil-handling and manufacturer site requirements into a controlled checklist. If a mismatch exists, close it between drawings and responsible parties before the field improvises a solution.

This is where the Blog and Wiki should work hand in hand. The story explains why Omar was willing to stop a crane that was already costing money. The linked technical guide explains how to verify the interfaces systematically. The memory hook is simple: a high-value transformer can be immobilized by a low-cost interface mismatch. The engineering content shows how not to repeat it.

Omar held the lift for two hours while the interface and corrective plan were confirmed. Someone complained about crane standby. He answered, “Two hours now is cheaper than discovering it before energization.” Procurement should not buy only equipment. It should buy enough interface certainty to support decisions like that.
